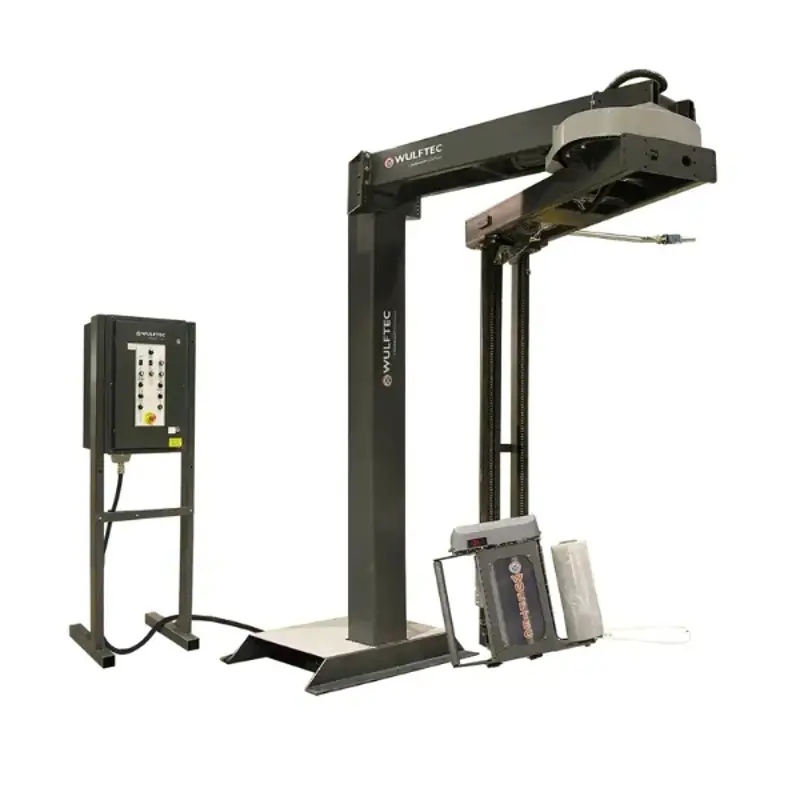

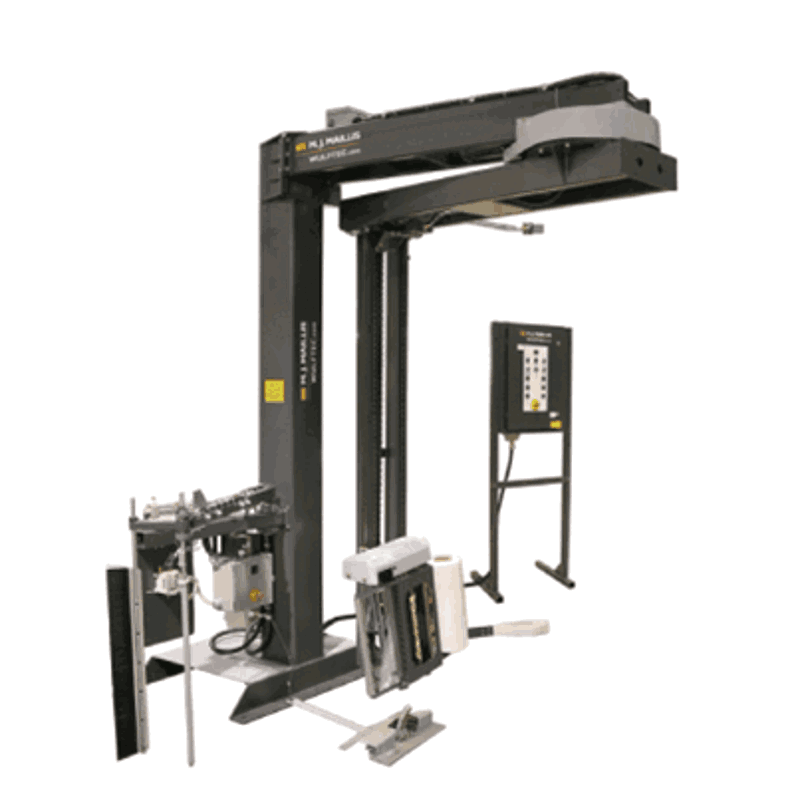

Wulftec WRTA150 Automatic Inline Rotary Arm Wrapping Machine
Stretch Wrapping Arm rotates around your pallet, making it the ideal choice for varying pallet sizes
The Wulftec WRTA150 is an Automatic Inline Rotary tower is designed for wrapping irregular, unstable, or very heavy pallets. With the load is placed on the floor, the rotating arm wraps around - making it ideal for tall, small, inboard, outboard, lightweight, or heavy products.
Installed within a safety cell, the machine start function can be achieved without the forklift driver getting off the truck. Multiple wrappers can be placed in a line and serviced with long tyne forklifts or wheelie trucks.
Customising options include bigger 750mm film carriage, hot or cold environment packages, and specialised coatings for various applications.
Backed by FROMM two year warranty, with an option to extend to five years with a film contract, the WRTA150 is a durable and versatile addition to any packaging line.
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Unlimited weight capacity
- 100% structural steel construction
- Stand-alone wrapping machine
- 630mm ring gear with pinion drive
- Automated lubrication system
- Allen Bradley controls and touchscreen
- 500mm NO-THREAD film carriage and 250% stretch capacity
Options
- Safety System Category 3 and 4
- Film Carriage 750mm
- Rotary Arm Speed 17 RPM
- Pneumatic Roping
- Electronic Scales
- Extensions - Increased height / width
- Heat Seal - Cut and Wipe
- Paint - custom colours &
Protective paint
Benefits
- Remote control operation
- Flexible setup options
- One-way or two-way access
- Single or double machine set up
- Easy on screen diagnostics
- Built for harsh environments
- Non proprietary spare parts
Machine Specifications
Unlimited
1400 x 1420 x 2200mm
250%
Up to 17 RPM (Std 12 RPM)
Allen Bradley
50 pallets / hour (WRTA150) 100 pallets / hour (WRTA150 2C)
500mm (standard)
3 CFM @ 80 PSI
Machine Options
Category 3 and 4
750 mm
17 RPM
Available
Available
Increased Height / Width
Cut and Wipe
Custom Colours Protective Paint
Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.
Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.
Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.
Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
