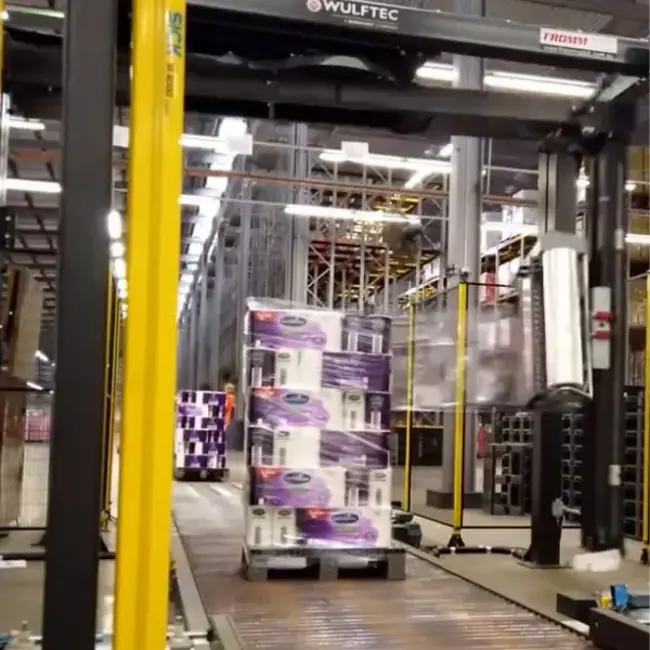

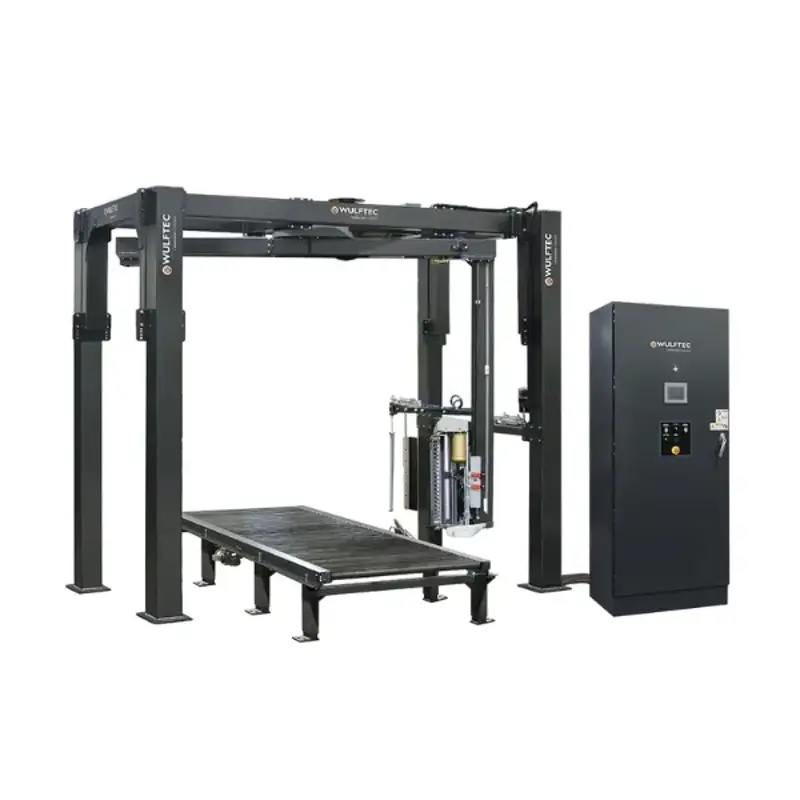

Wulftec WCRT200 Automatic Inline Rotary Arm Wrapping Machine

Automatic Wrapping Machine can wrap up to 100 pallets per hour

Capable of processing up to 100 pallets per hour, you will find the WCRT200 in a range of industries demanding high speed solutions.

Built for versatility, the WCRT200 can be customised for heights ranging from 500mm to 3000mm and operate seamlessly in harsh environments, including dirty, hot or cold environments , with or without topsheet.

The WCRT200 enhances load stability by rotating around the stationary pallets. Intelligent  system tracking provides real time insights into key metrics, including loads per hour, throughput, and film usage.

Backed by the FROMM two year warranty, the WCRT200 can be upgraded to five year warranty with a film contract. It's low cost of ownership and proven durability in tough environments make it a trusted choice for high-volume packaging operations.

Two year warranty
Two year warranty
Simulation tested
Simulation tested
5 star rated
5 star rated
Environmentally-friendly
Environmentally-friendly

Features

  • 2200kg load weight capacity
  • 100% structural steel construction
  • 630mm ring gear with pinion drive
  • Automated lubrication system
  • Allen Bradley controls and touchscreen
  • 500mm NO-THREAD film carriage and 250% stretch capacity

Benefits

  • Capable of wrapping up to 100 pallets / hour
  • Highly customisable
  • Easy on screen diagnostic panel
  • Engineered for harsh environments
  • Non proprietary spare parts
  • Standalone system or fully integrated
Machine Specifications
Max. Load Weight

2200 kg

Max. Load Size

1270 x 1270 x 2030 mm

Pre-Stretch

250 %

Rotary Arm Speed

17 RPM

Controls

Allen Bradley

Throughput

Up to 100 pallets / hour

Film Carriage

500 mm (standard)

Power

415 / 3 / 15

Air Supply Needed

3 CFM @ 80 PSI

Machine Options
Conveyors

Roller or Chain

Conveyors

Infeed, outfeed and process conveyor

Safety System

Category 3 and 4

Film Carriage

750 mm

Topsheet Dispenser

Available

Top Platen

Available

Roping Device

Manual or Pneumatic

Extensions

Increased Height / Width

Paint

Custom Colours Protective Paint

Download library
WCRT-200-Brochure

Download

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
