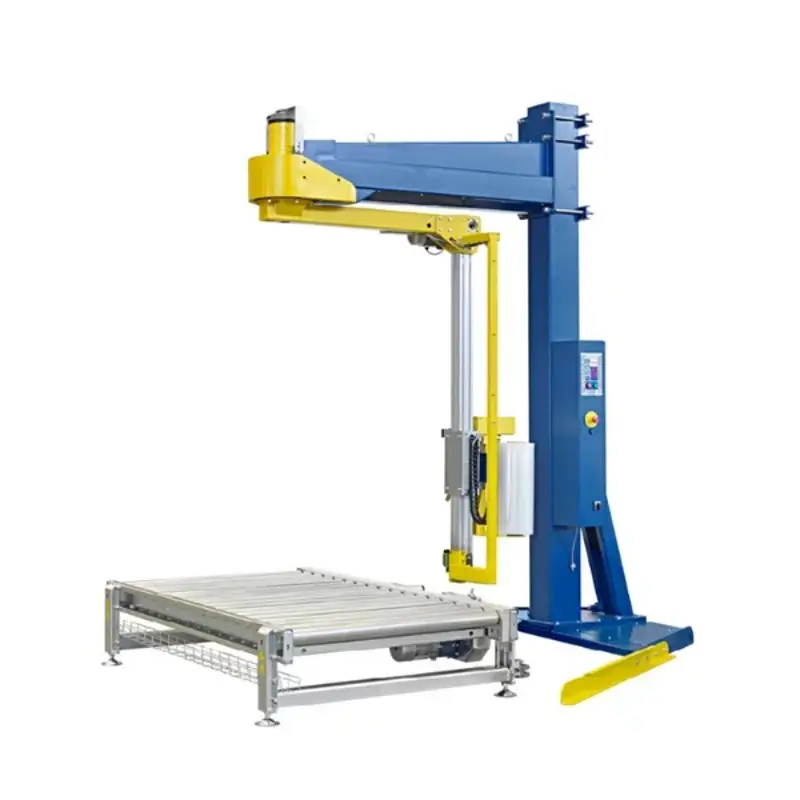

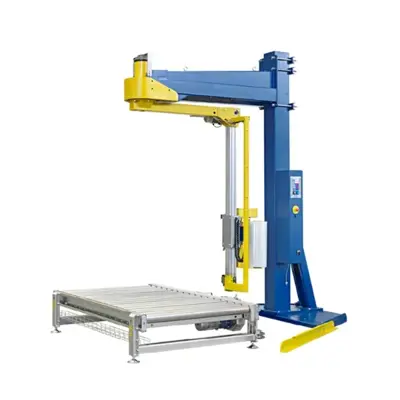

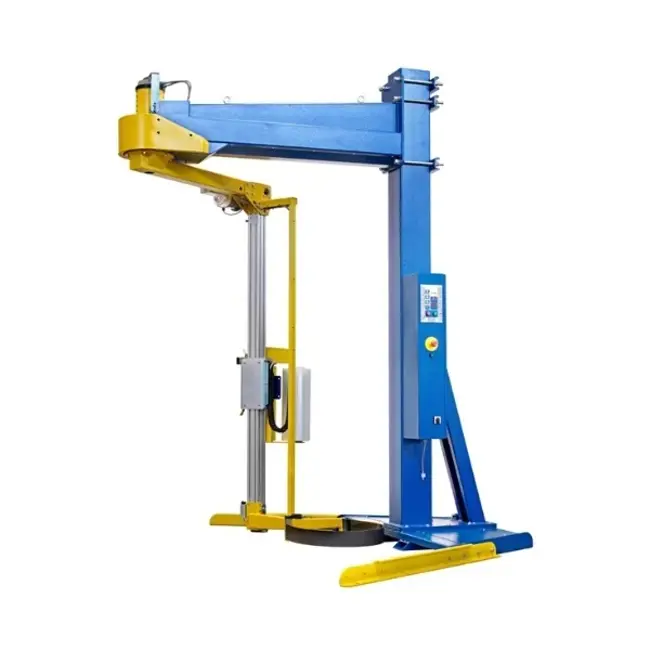

FS550 Series Rotary Arm Wrapping Machine

For high volumes of heavy or irregular shaped products.

The FROMM FS550 Series are semi-automatic rotating arm pallet wrappers designed for busy operations and heavy workloads. Focused on quality, safety, and reliability, these machines are built to last with minimal maintenance and can be used with pallet jacks or forklifts.



Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • 200% powered pre-stretch film delivery
  • Lots of add on options
  • Robust and strong design
  • On screen diagnostics
  • Adjustable turntable speed





Options

  • Conveyors Roller or chain
  • Cardboard corner applicator (see video)
  • Conveyors Infeed and outfeed
  • Safety Systems Fencing, muting sensors and light curtains
  • Topsheet Dispenser In-cycle or in-line
  • Top Platen
  • Label Applicators
  • Pallet Lifting
  • Cold Temperature Package
  • Hot Temperature Package

Benefits

  • Plug & play technology
  • Capable of wrapping up to 50 pallets / hour
  • High production capacity
  • Can accommodate various loads and configurations
  • Customisation packages available
  • Fast and simple roll changes
  • Stand-alone or integrated operation
  • FROMM standard 2 year warranty
Machine Specification
Max. Standard Load Size

1220 x 1220 x 2200 mm

Pre-stretch System

200% Standard, options for variable 0-400%

Cut & Wipe Film Release

Yes - Standard

Rotating Arm Speed

5 - 12 rpm

Throughput

Up To 70 Pallets / Hour

PLC

Siemens S7 Series

Film Carriage

500 mm - 750 mm

Machine Options
Conveyors

Roller or Chain

Conveyors

Infeed and Outfeed

Safety Systems

Fencing, muting sensors and light curtains

Topsheet Dispenser

In-cycle or In-cycle

Top Platen

Available

Label Applicators

Available

Pallet Lifting

Available

Cold Temperature Package

Available

Hot Temperature Package

Available

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and our wrapping machines precise product usage minimises unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
