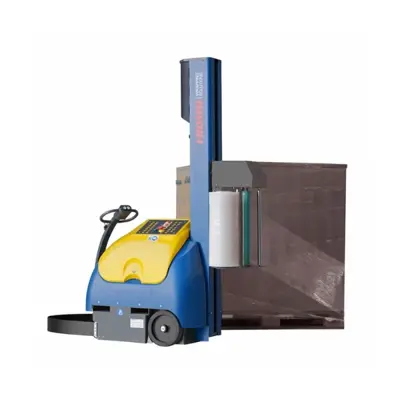

FR390 Semi Automatic Robotic Wrapping Machine

Wrap any shape, anywhere

Unlike fixed turntable machines, the FR390 goes where it is needed and features automatic pallet height detection and a pre-stretch film carriage.

  • Mobile, self propelled with high capacity battery (approx. 150 cycles per charge)
  • Wrap irregular shaped loads anywhere
  • Reduce film usage with pre-stretch film carriage
  • Inbuilt safety sensors for movement detection



Weight

Unlimited

Dimensions

2150 mm wrap height

Training

Available

Purchase Options

Buy, Rent or FROMM Stretch

Two Year Warranty
Two Year Warranty
Simulation Tested
Simulation Tested
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • High capacity battery
  • Mobile and self-propelled
  • 200% pre-stretch film carriage
  • Automatic pallet height detection
  • Programmable wrapping patterns
  • AS / NZS safety standard wiring

Benefits

  • User friendly and low maintenance
  • Mobile alternative to hand wrapping
  • Capable of wrapping up to 150 pallets per charge
  • Inbuilt safety sensors for movement detection
  • Reduce film usage with pre-stretch film carriage
  • FROMM 2 year warranty
Machine Specification
Carriage

Single motor pre-stretch

Pre-Stretch

200 %

Maximum Pallet Weight

Unlimited

Maximum Pallet Height

2150 mm (plus pallet)

Operating Area Required

1500 mm around the load

Speed Control

Frequency converter

Battery Power

2 x 12 Volt - 110 Ah serial connected

Operating Conditions

5 - 45°C

Options
Extended Mast

Up to 3500 mm

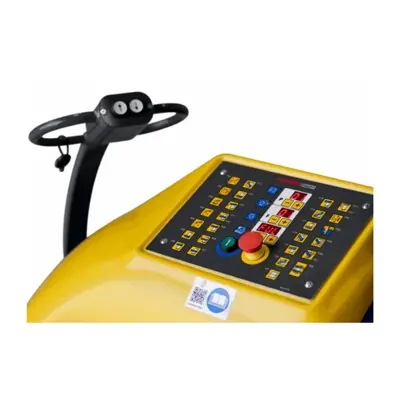

Control Panel

OP 1 or OP 2 (99 wrap programs)

Photo Eye

For dark products

Cutting Device

Automatic film cutting system

Roping Device

Automatic or manual roping device

Low temp kit

For wrapping environments -5°C

Download library
Data Sheet FR390 Series

Download

FR390 Use & Maintenance Manual

Download

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
