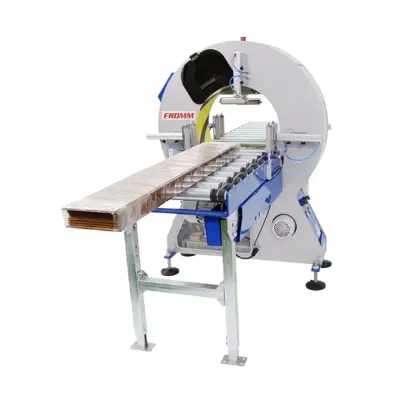

FV350-50 Automatic Inline Orbital Wrapping Machine
Ideal for wrapping long pipes, tubes or rods in small process lines
- 500 mm diameter ring
- Wrap up to 1.8x faster with twin film dispensers
- Adjustable film tension
- Automatic film clamp and cut
- View machine specifications and options >>

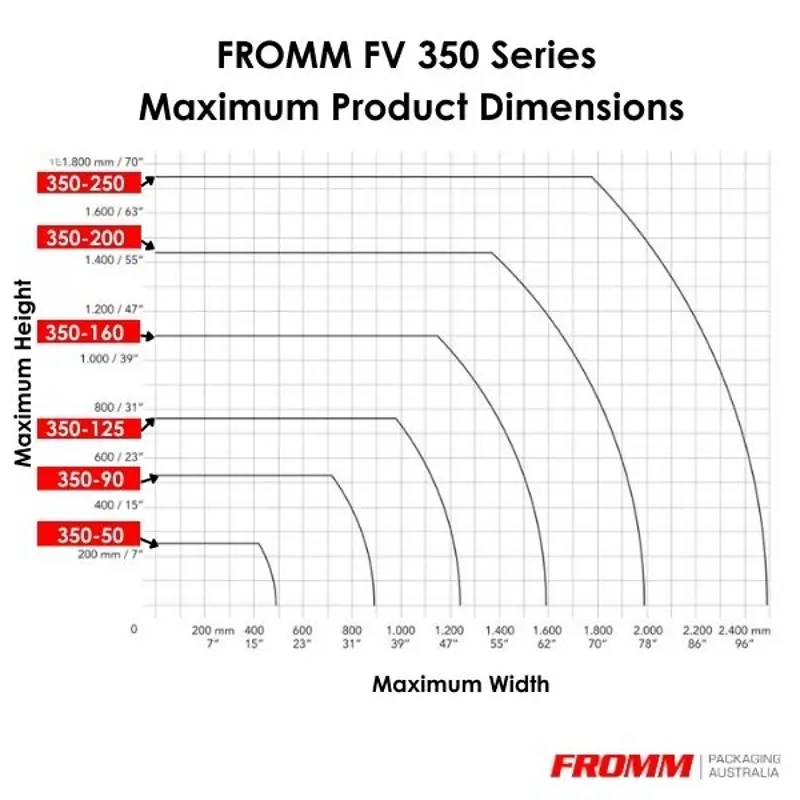

Dimensions
Min. 50x50 mm (WxH);_____ Max. 400x250 mm (WxH)
Purchase Options
Buy or rent
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Double reel film dispensers
- 500mm wrapping ring
- Adjustable speed up to 180 RPM
- Mechanical film brake
- Automatic start
- Automatic film clamp and cut
- To be placed in production line
- Six wrapping programs available
- Touch screen control panel
- Safety system
Options
- Powered infeed and outfeed conveyors - range of options
- Manual or automatic top pressers to stabilise load
- Manual or automatic side rollers to guide or group product
- Bridge for short products
- Automatic system to load or unload product
- Automatic top and bottom bubblewrap dispenser
- Film reel end warning light
Benefits
- Wrap up to 1.8x faster with double reel film dispensers
- Easy operation
- Fast roll changes (no tools required)
- Automatic features and programmable wrapping patterns
- Range of additional options
- FROMM 2 year warranty
Machine Specification
500 mm
W: 400 mm, H: 250 mm, L: Unlimited
W: 50 mm, H: 50 mm, L: 500 mm
5 - 180 RPM
Included
Dependent on conveyors
100 mm
420 V / 50 Hz / 3 Phase
6 Bars
Included
Machine Options
For infeed and outfeed, range of types
Manual or automatic to guide or group product
Manual or automatic to stabilise load in wrapping cycle
For products < 500 mm in length
To load or remove products laterally
Automatically protect your products in bubble film before you wrap them.
Available
Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high quality, tear resistant stretch wrap is capable of significant stretch without compromising product integrity for suitable products.
Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. Enhanced film stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimises unnecessary waste.
Reduce: Reviewing the film thickness can significantly reduce the amount of plastic needed, providing the same performance as thicker films.
Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.
Recycle: FROMM Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with our customers to ensure that used film enter the recycling stream whenever possible.
