Automatic Inline Strapping Machine - 80000 Series

Automatic, Horizontal Strapping System Capable Of Running Both Steel And Plastic Strapping. Suitable For Agricultural Products Such As Fruit Trays, Bales Of Hay, Fodder Or Cotton. Can Also Be Used As A Solution For Masonry, Bricks And Blocks

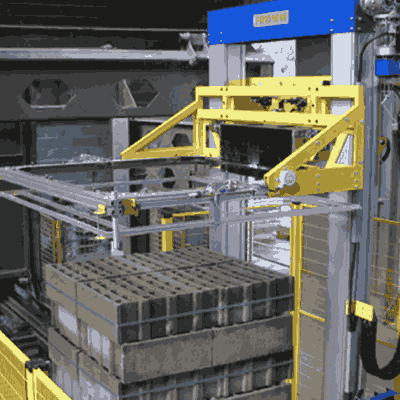

The FROMM 80000 series is a fully automatic horizontal strapping system capable of running both steel and plastic strapping material.

The product is positioned via conveyor or forklift adjacent to the frame of the strapping machine, usually moved by conveyor. The FROMM series system then moves downward to apply "Horizontal" banding. The number of straps are determined by the customers need.

The 80000 series horizontal strapping system is a popular model for masonry, block and brick and is often used in conjunction with a vertical strapping machine such as the 10000 series to create a stable and secure load.

In addition, 80000 series is suitable for agricultural product markets, for trays of fruit or vegetables, bales of hay, fodder or cotton.

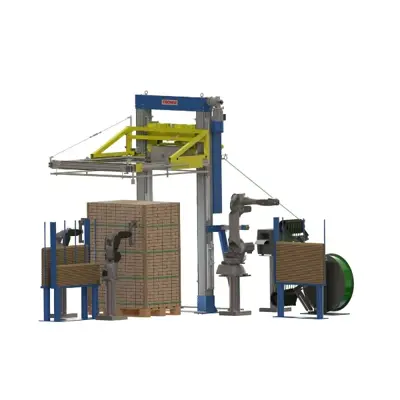

The system can host an array of options including squaring devices, light compression and even robotic application of long vertical corner protection.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Horizontal strapping arch to apply strap horizontally around product
  • Up and down strapping pattern
  • Strapping head on movable frame
  • Automatic and manual functionality
  • Siemens controls and touch screen
  • Modular with many add on features
  • Uses Steel & PET strapping
  • Fast strapping cycle

Benefits

  • Plug and play technology
  • High production capacity
  • Extensive customisation and options available
  • Fast and simple roll changes
  • FROMM 2 year warranty
  • 150,000 service intervals
  • On screen fault finding
Specification
Max. Load Weight

Dependent on conveyors

Max. Load Size

Unlimited

Seal Joint

Friction, up to 85% of strap breaking strength

PET Strap Width

9 - 32 mm

PET Strap Thickness

0.40 - 1.35 mm

PET Tension Speed

105 mm / second

PET Maximum Tension

7000 Newtons

Steel Strap Width

12 - 32 mm

Steel Max Tension

18000 Newtons

Options
Strapping Track

Fixed or Gated

Strapping Head

Fixed or Floating

Compression

Top or Side, Top and Side

Compression

1000 - 5000 kg

Dispensers

Standard, jumbo or superjumbo

Corners

Top and Bottom, or Top or Bottom

Bearer Feeder

Magazine or Robot

Cleaning

Automatic Head Cleaning

Bayonet

Fixed track or bayonet to strap through the pallet

FROMM plastic strapping is manufactured in one of our global production centres using almost 100% recycled polyester resin. Extruded on one of our state of the art production facilities, FROMM uses RPET resins with high IV values. Strapping can be offered on small 20 kg coils up to 250 kg super jumbo rolls.

Reuse: PET straps are not generally reused in their original form, but they contribute to a sustainable cycle. Once the strapping has served its purpose, it can be collected, recycled, and transformed into new, high-quality products, helping to minimise waste.

Reduce: By choosing lightweight PET straps, designed for our machines and tools,  businesses can lower transportation emissions and decrease material usage, contributing to a more sustainable packaging solution.

Recycle: Fully recyclable, our PET straps support a circular economy. After use, they can be processed into new products, reducing landfill waste and promoting sustainability.
