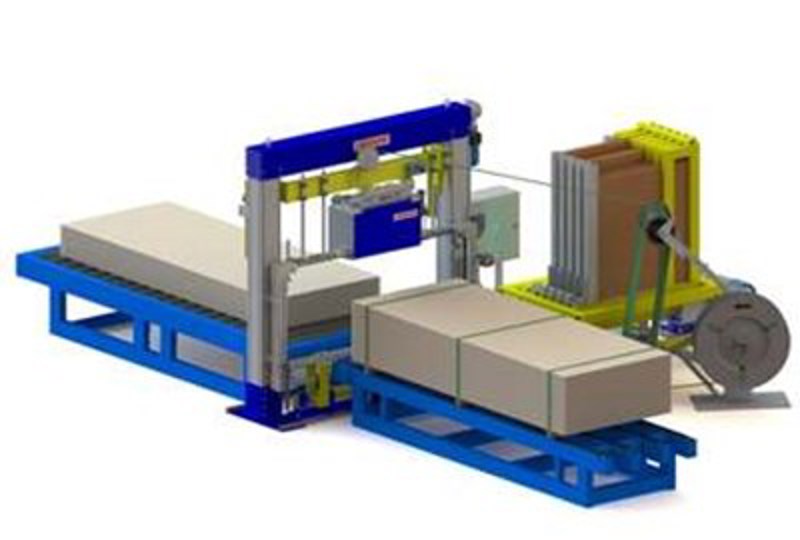

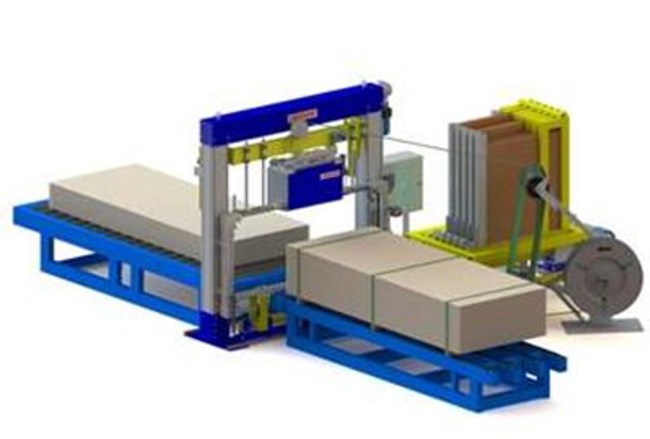

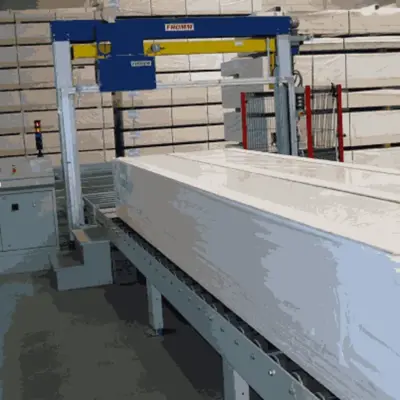

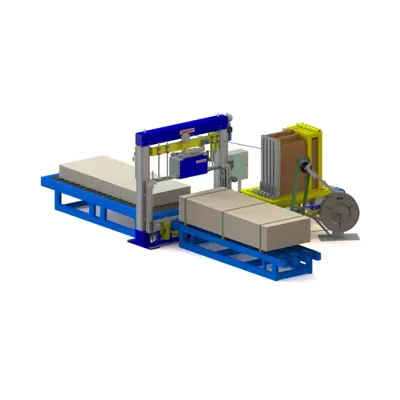

Automatic Inline Strapping Machine - 10000 Series
Automated Top Seal Strapping Machine for Timber, Logistics, Bricks and Metals with lots of modular options.
The FROMM 10000 series of automated strapping machines is widely regarded as the global workhorse of the line-up.
Starting from its basic model and extending to fully optioned versions, the series is capable of strapping a wide variety of products such as paper, corrugated cartons, beverage containers, timber, tiles, bricks and blocks, steel and aluminium products including ingots, pipe, tubes and coils.
Additionally, the 10000 series can be enhanced with various options, such as robotic inserts, high compressions features, label applicators, and protective corners and sheets. This machine supports both plastic and steel strapping for all types of products.
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Strapping head on top
- Any FROMM strapping head designed for steel and plastic strap can be used
- Siemens controls and touchscreen
- Modular with many add on features
- Fast strapping cycle
Benefits
- Plug and play technology
- High production capacity
- Extensive customisation and options available
- Fast and simple roll changes
- FROMM standard 2 year warranty
- 150,000 cycle service intervals
- On screen fault finding
Specification
Dependent on conveyors
Unlimited
Friction, up to 85%
0.50 - 1.00 mm
0.4 mm - 1.35 mm
105 mm / second
18000 newtons
7000 newtons
Options
Fixed or Grated
Fixed Or Floating
1000 - 5000 kg
Standard, Jumbo or Superjumbo
Top corner applicators, bottom corner applicators
Magazine or Robot
Automatic Head Cleaning
Fixed track or bayonet to strap through the pallet
FROMM plastic strapping is manufactured in one of our global production centres using almost 100% recycled polyester resin. Extruded on one of our state of the art production facilities, FROMM uses RPET resins with high IV values. Strapping can be offered on small 20 kg coils up to 250 kg super jumbo rolls.
Reuse: PET straps are not generally reused in their original form, but they contribute to a sustainable cycle. Once the strapping has served its purpose, it can be collected, recycled, and transformed into new, high-quality products, helping to minimise waste.
Reduce: By choosing lightweight PET straps, designed for our machines and tools, businesses can lower transportation emissions and decrease material usage, contributing to a more sustainable packaging solution.
Recycle: Fully recyclable, our PET straps support a circular economy. After use, they can be processed into new products, reducing landfill waste and promoting sustainability.
