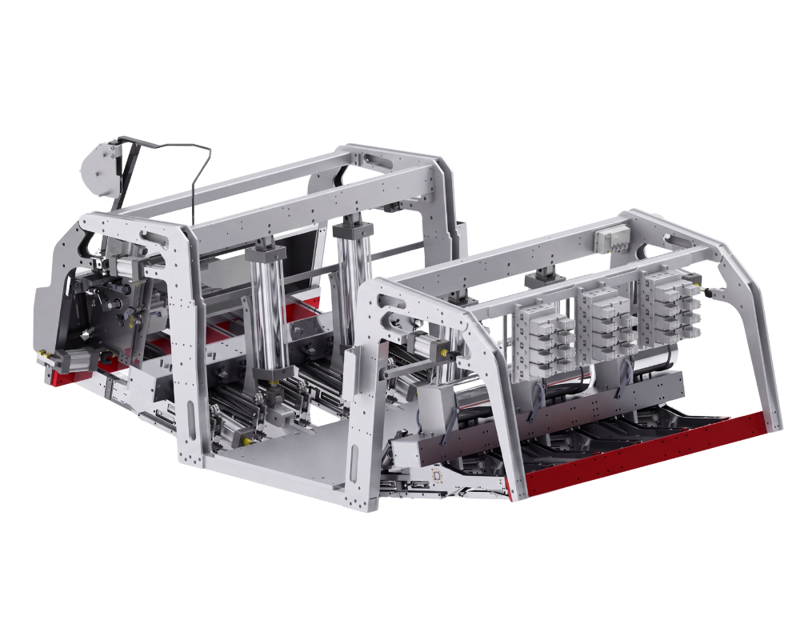

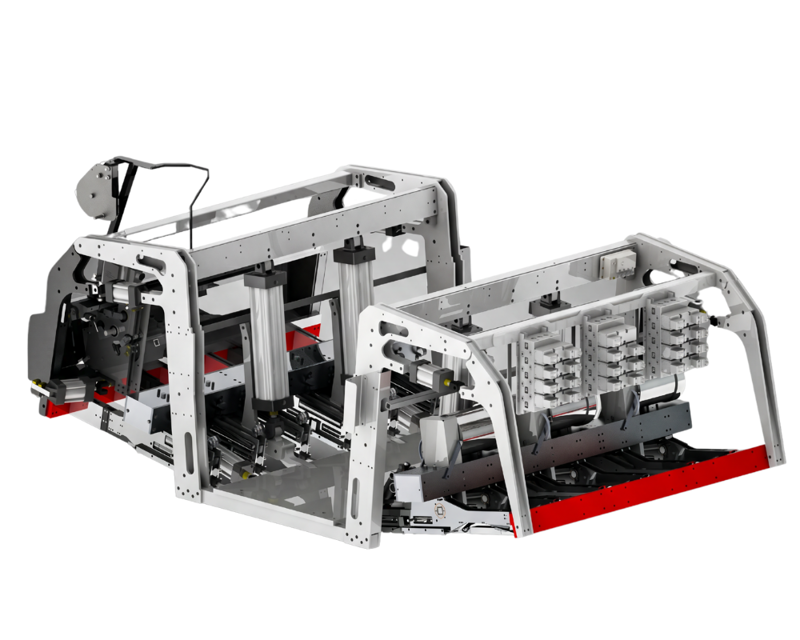

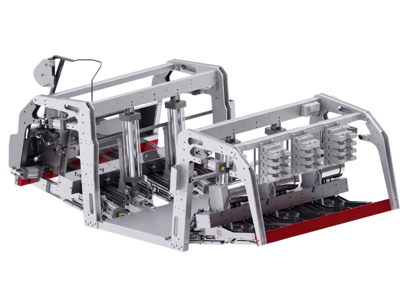

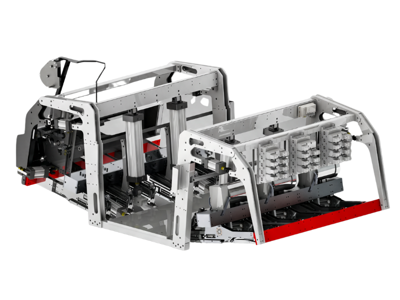

P600 Automatic Bale Strapping System
Designed for up-packing press applications, delivering proven performance in demanding cotton gins
- Up-packing press applications
- Engineered to handle considerable 'cotton fly'
- Strap weld on ball of the bale
- Standard P600 fastest cycle time 15 seconds (approx.)
- P600-2S fastest cycle time 12 seconds (approx.)
- View machine specifications and options >>
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Designed for continuous duty cotton gins
- Strap weld on ball of bale
- Fast automatic strap cycle
- Pre-stage capability on P600-2S
- Simplified service and strapping head change
Benefits
- Industry proven JENGLO machine
- High production capacity
- Manual intervention eliminated
- Increase production efficiency and reliability
- Uses 1 double dispenser which reduces system footprint and simplifies handling
Specifications
Press Type
Up-packing press applications
Standard Model
P600
Optional configuration
P600-2S two-stage arms
P600 Min. Cycle Time
15 seconds approx.
P600-2S Min. Cycle Time
12 seconds approx.
Strap Process
Automatic feed, cut and weld
Weld Location
Ball of bale
Head Arrangement
6 weld heads and 6 supply heads
Feeder Arrangement
1 feeder assembly preloads all 6 strap positions
Recommended spare parts
Spare weld head and supply head assemblies
