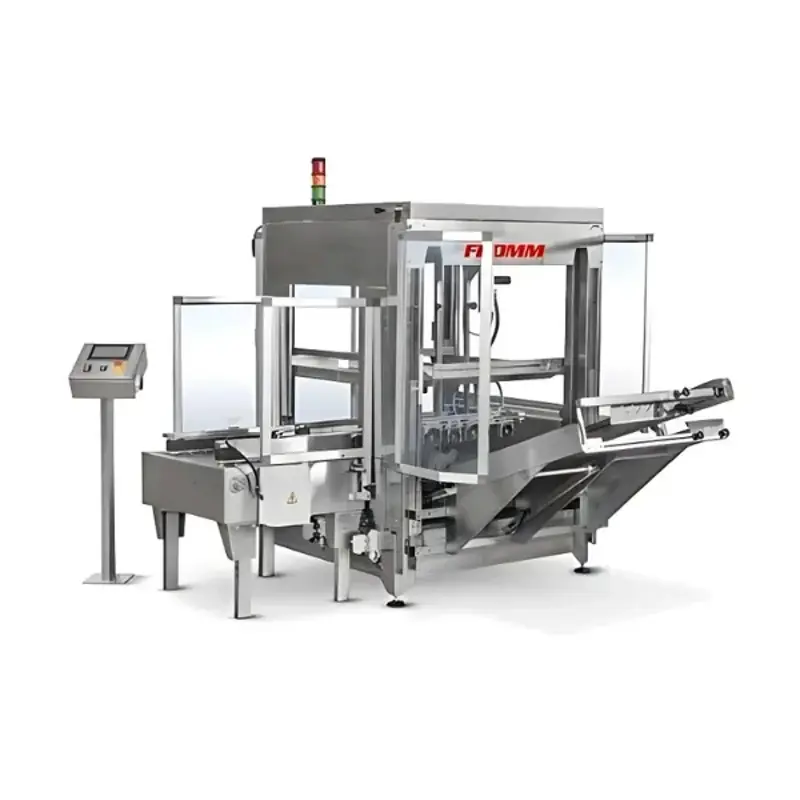

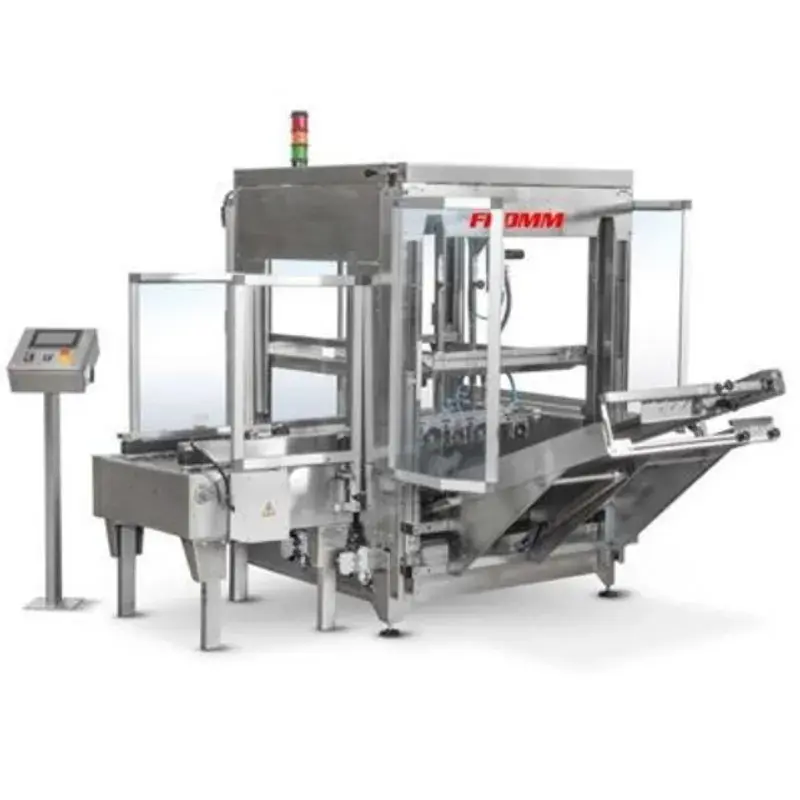

FCE1000 Automatic Carton Erector

Automate carton building and increase warehouse efficiency

The FROMM FCE 1000 is a durable machine capable of increasing productivity and efficiency within the packing line.  The machine on average can produce 840 formed boxes per hour with minimal operator intervention. This eliminates the need for manual carton handling as the carton erector folds and forms the box ready for sealing and filling.

FROMM offer a range of carton taping machines compatible with the erector to seal the box after it has been formed.  Depending on sealing requirements, we offer acrylic tape, hot glue melt or for a sustainable option gummed paper tape.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Large Cassette
  • Siemens S7-1200 PLC
  • 18 cm touch screen
  • Automatic Start Up

Benefits

  • High capacity for less changes
  • Integrated into production environment
  • Fast and reliable
  • FROMM 2 year warranty
Technical Specification
Box Dimensions

Length: 190 mm - 400 mm Max

Width: 100 mm - 400 mm Max

Height: 100 mm - 500 mm Max

Average Production

840 boxes per hour

Box Load Capacity

110 Boxes

Power Supply

Three Phase / Single Phase

Machine Weight

510 kg

Air Consumption

22 NL

Control Panel

Siemens S7 - 1200 PLC

Options
Caster Wheels

Min. working table height 750 mm

Motorised Box Loader

With capacity of 270 boxes

Download library
FCE 1000 Automatic Carton Erector-Brochure

Download

Carton erector machines transform flat cardboard into sturdy cartons with minimal manual labour, enhancing efficiency in high-volume packaging operations. These machines allow them to address high customer demand at constant intervals. When paired with carton sealing machines, FROMM’s carton erecting solutions create a fully automated system that speeds up production that delivers on product safety and integrity.

Reuse: While carton erectors optimise cardboard use, businesses can further improve sustainability by finding ways to reuse leftover materials. Repurposing packaging materials for in house applications can extend a product life cycle before disposal.

Reduce: Optimise cardboard usage one box at a time and minimise labour efforts.

Recycle: Our carton erector machines are compatible with recyclable materials. By implementing effective sorting processes for used cardboard and ensuring proper recycling protocols, businesses can actively contribute to a robust recycling stream, promoting a circular economy.
